Description

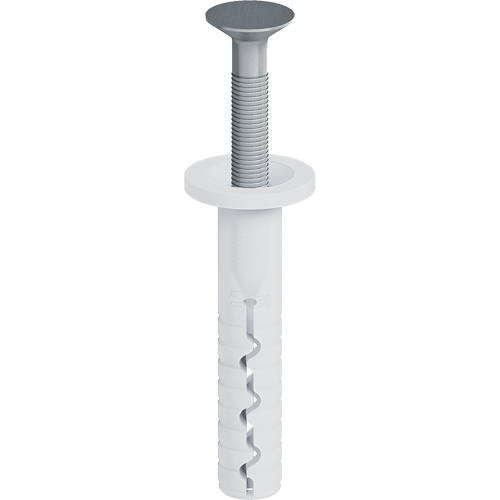

Ejotherm NK U 8x45mm & 8x65mm (Box100)
Applications
- Fastening of rail-systems
- Screw-in anchor for rails
- For fixing holding and base rails
- Approved for all categories of building materials
Properties
- Approved for all categories of building materials
- Shortest embedment depths, minimum drill hole depths
- Highest loads for maximum safety
- Economic anchor usage
- Premounted screw for quick installation
- To compensate facade tolerances use spacers EJOT AS
Technical specifications :
Ejotherm NK U 8 x 45mm
- Anchor diameter : 8.0
- Length : 45.0
- Substrate Categories : A-E
- Screw-in-/hammer-inanchor : screw-in-anchor
- Embedment depth = 25 : 20.0
Ejotherm NK U 8 x 65mm
- Anchor diameter : 8.0
- Length : 65.0
- Substrate Categories : A-E
- Screw-in-/hammer-inanchor : screw-in-anchor
- Embedment depth = 25 : 40.0
