Description

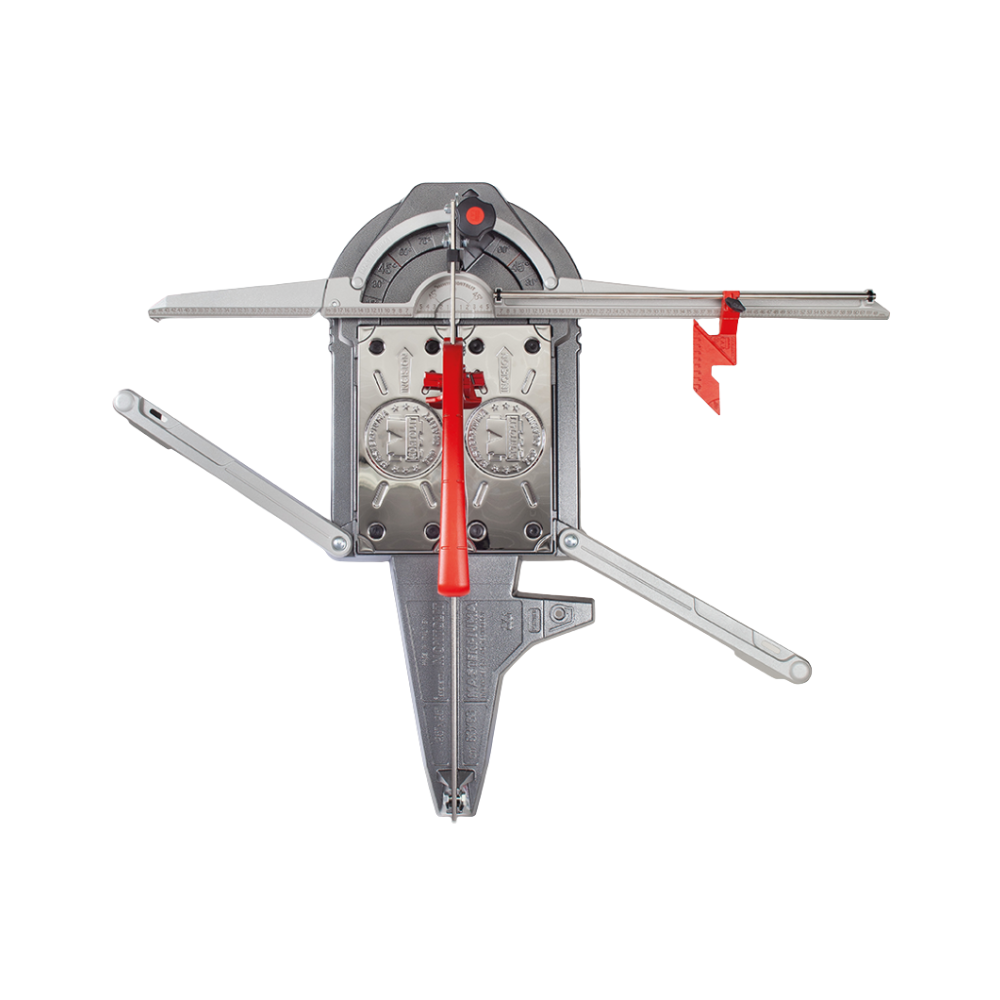

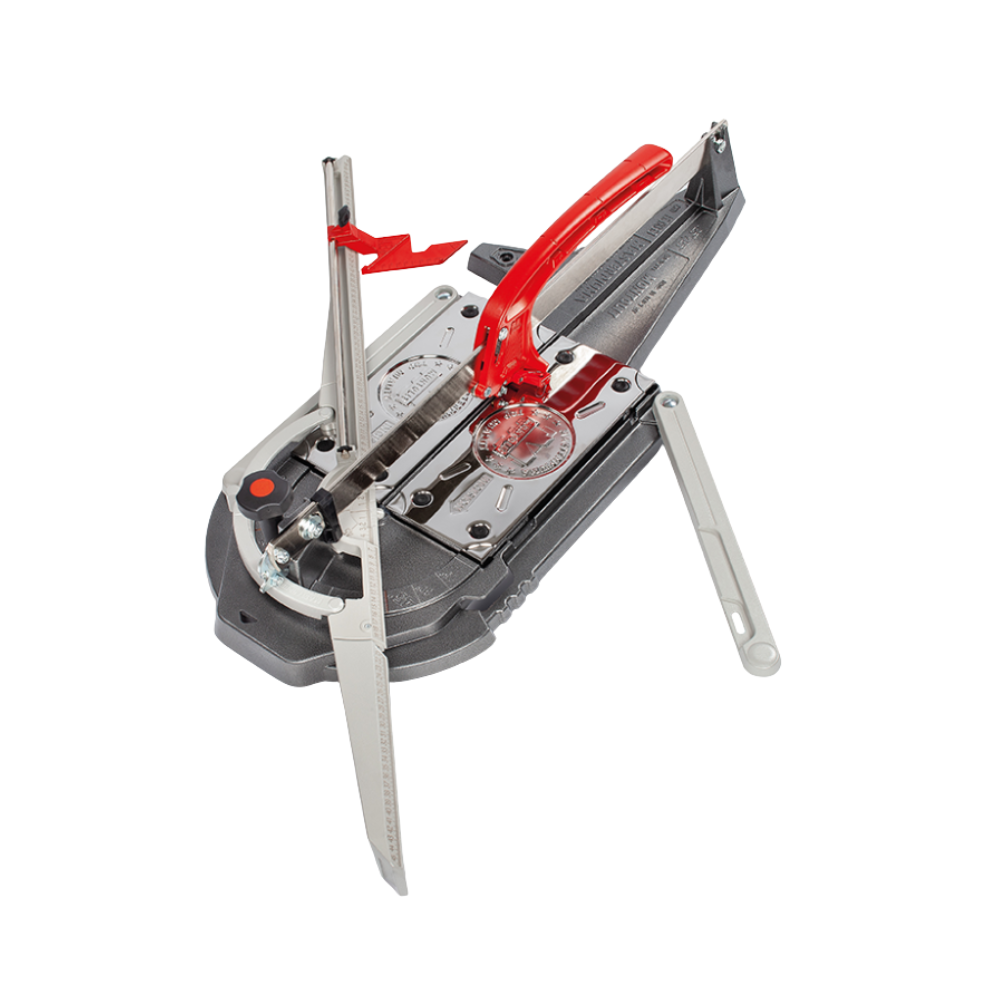

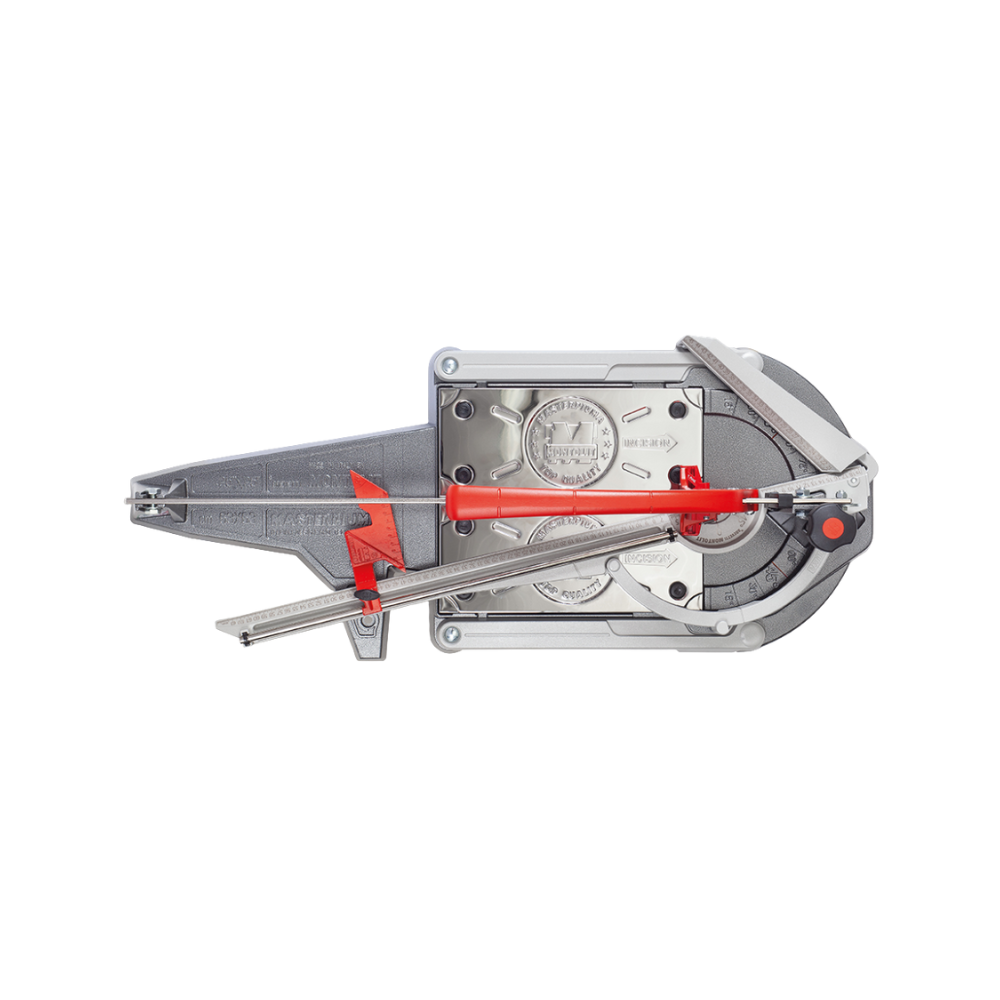

63P5XL - Masterpiuma "Power 5" Mod XL
PROFESSIONAL MANUAL TILE CUTTER
MASTERPIUMA P5 is the professional tile cutter for cutting all types of ceramic tiles with thicknesses between 0 and 20 mm.
- Modular frame in light alloy, sized and structured in the points of greatest stress, with the insertion of reinforcements and ribs that optimise its behaviour in the case of cuts on thickened or full-body porcelain.
- Protractor square with extended extension that can rotate both to the right (+ 45°) and to the left (- 45°).
- Folding stop (nose) that allows precise cuts in succession at any angle.
- Wheel holder handle with force indicators that allow the operator to manage the cutting depth and splitting force.
- Cutting stand in scratch-resistant and stain-resistant technopolymer.
- Titanium coated tungsten carbide engraving wheel.
- Integrated lubricator.
- RAS (Roller Adjuster System) device, cylinder made of anti-friction and wear-resistant material to always maintain contact with the bar/crosspiece and ensure perfect sliding of the tool holder for extremely precise engravings.
- Spring-loaded and expanded support surfaces.
- The XL version is equipped with lateral spring arms for holding the tile.
International Patent, 100% Made in Italy, 100% recyclable.
ADVANTAGES
- Speed of use.
- Cutting precision.
- Structure suitable for high thickness compact tiles.
- Lightness and ease of transport.
- Always ready for use.
Technical data sheet
| Team Type | Goniometric |
| Type of Cut | Manual |
| Maximum Cutting Height (cm) | 2.0 |
| Dimensions (cm) | 97x 42 x 22 |
| Maximum Cutting Length (cm) | 63 |
| Maximum Diagonal (cm) | 44 x 44 |
| Weight (kg) | 11 |
Materials
- Double firing
- Enamelled ceramic
- Ceramic
- Delicate ceramics
- Hard ceramic
- Cooked
- Porcelain stoneware
- Thickened porcelain stoneware
- Klinker
- Mosaic
- Glass tiles
