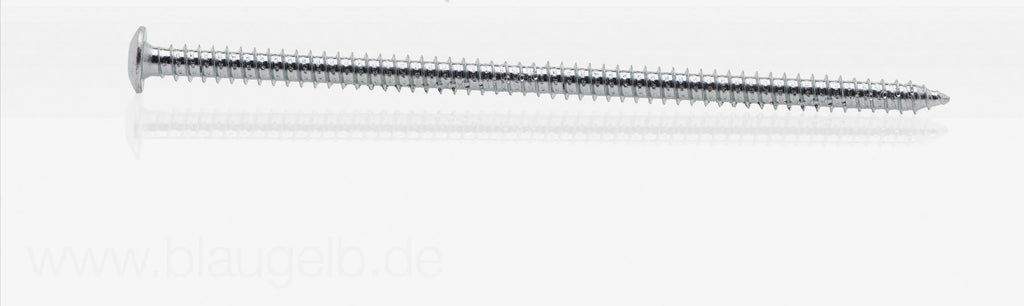

The blaugelb Frame screw Fix FK-T30 is the universal fastener for no-plug,
efficient installation of construction elements made of wood, PVC, aluminium and wood/aluminium into a wide variety of substrates (concrete, sand-lime brick, solid brick, wood, lightweight concrete, porous concrete, vertically perforated brick).

The blaugelb Frame screw Fix FK-T30 is especially suitable for the following applications:


• Direct fastening for strainless installation of windows and doors
• Suitable for all frame materials
• Can be used without lateral spacer chocks (verified by technical tests)
• Fastening load-transferring blaugelb Triotherm+ profiles and auxiliary mounting brackets and supports

Product benefits:

• Established and industry-proven fastening
• Tapered thread tip reduces screw-in torques
• Universal use in a wide range of common building materials
• Distance fastening without lateral chocking (with test certificate)
• Suitable for clamping assembly
• Optimum transmission of the screw-in torques by TX drive

DOWNLOADS

Technical Data Sheet

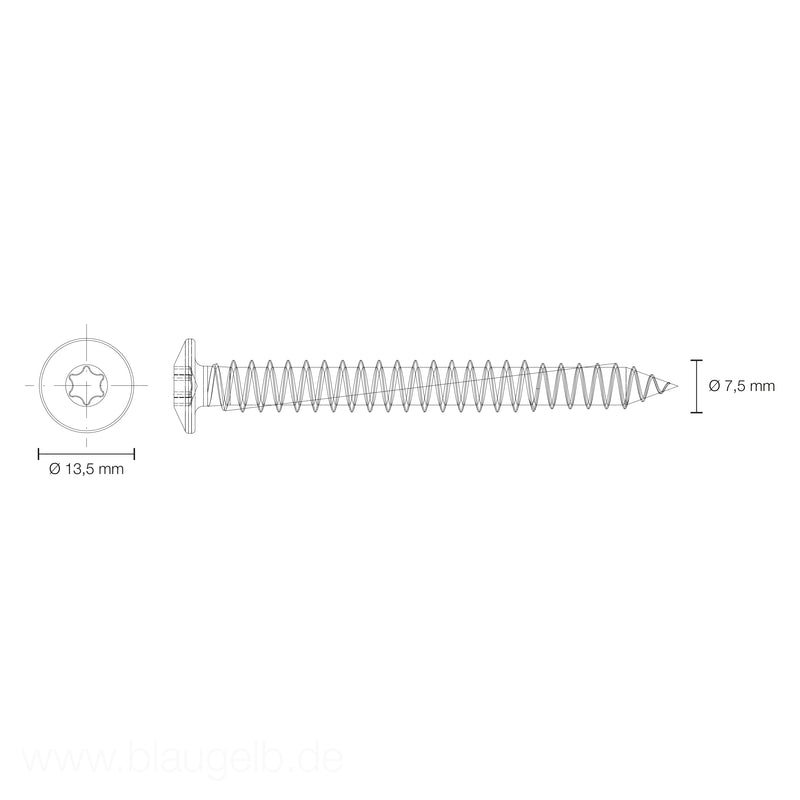

Material:	Case-hardened carbon steel
Surface:	Galvanised white
Thread:	Tapping-screw thread with tapered tip
Diameter:	7.5mm
Diameter of head:	13.5mm
Drive:	TX T30
Head shape:	Flat head
