Triotherm+ Thermal Insulation Bracket


Size: 70x85x1175mm
Price:
(
Request for best price
per pack )
(
Request for best price
per pack )

Description

blaugelb Triotherm+ profile 70x85x1175mm

Bundle of 9 pcs.

blaugelb Triotherm+ profile 100x85x1175 mm

Bundle of 6 pcs.

blaugelb Triotherm+ profile 120x85x1175mm

Bundle of 6 pcs.



Install anywhere and use any seal – and still obtain a tried and tested result.

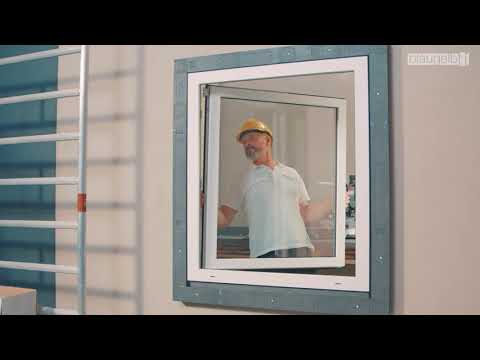

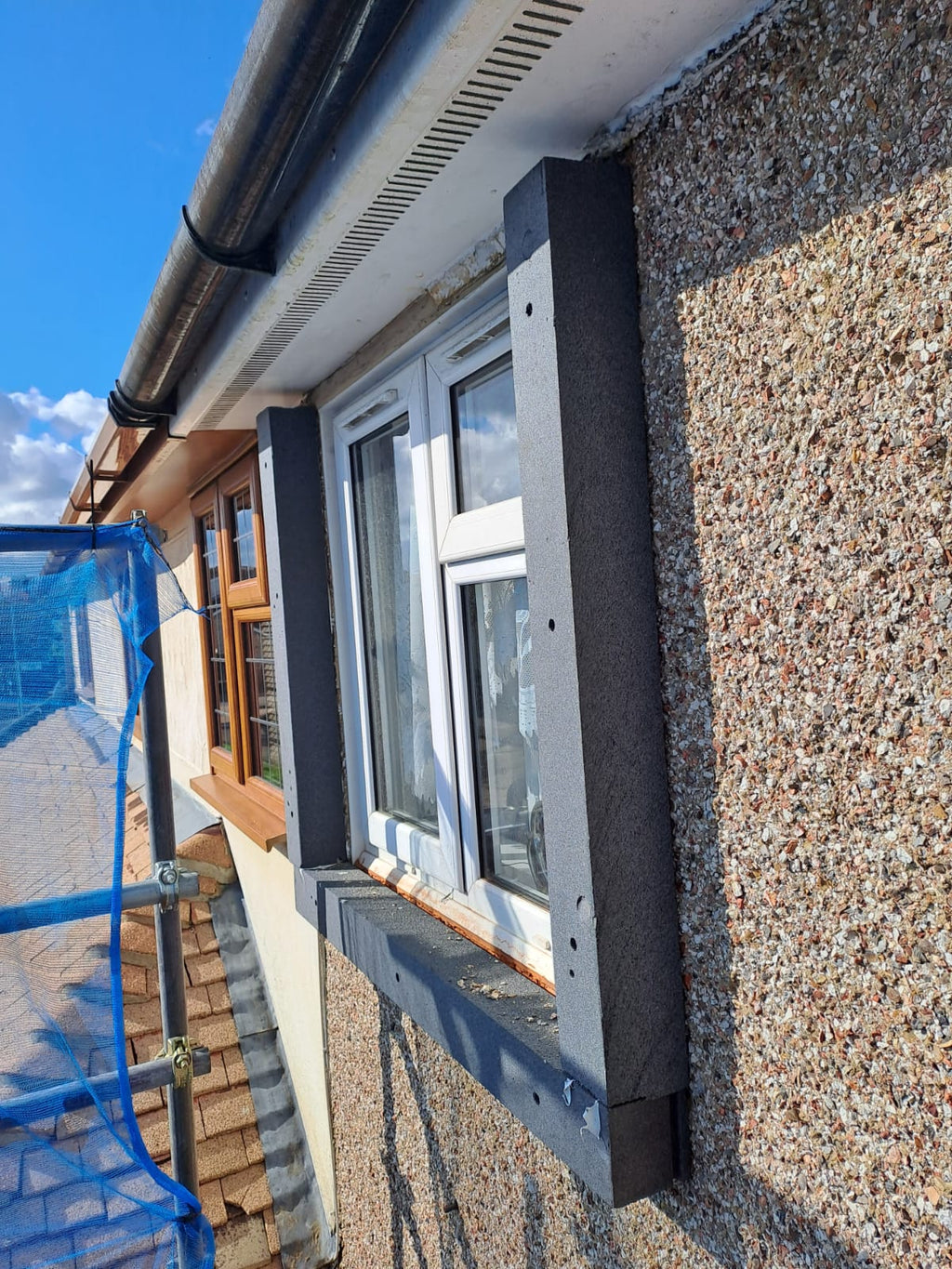

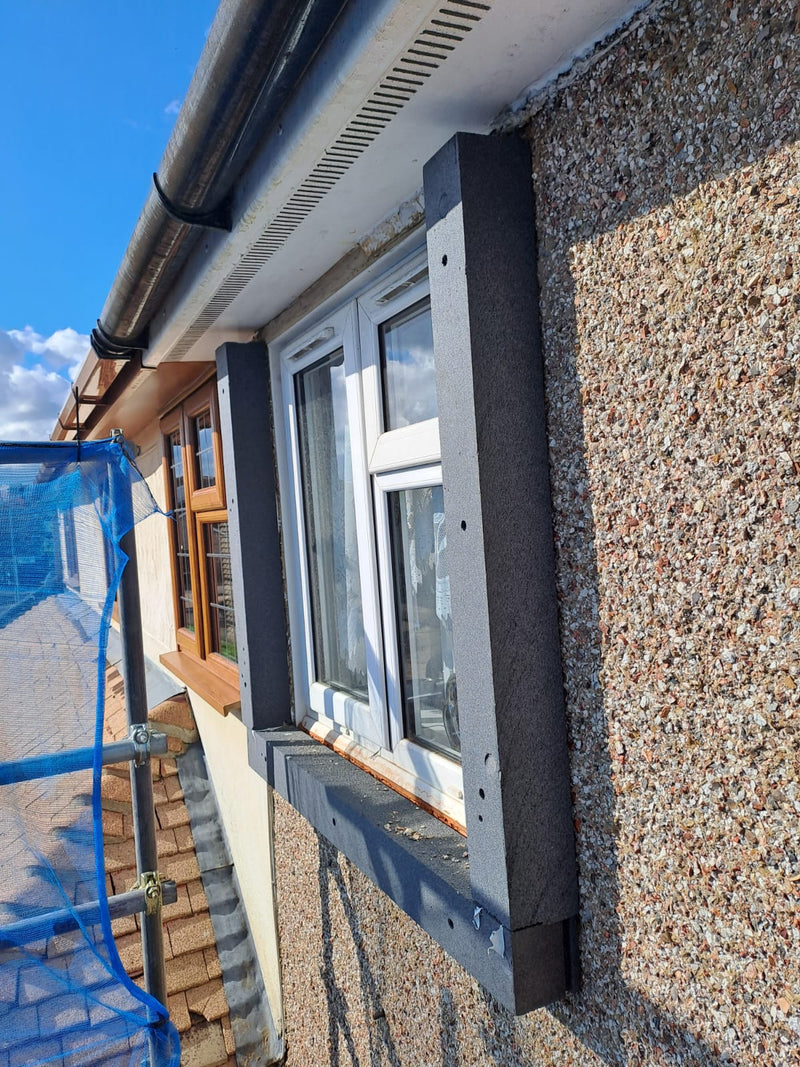

Placing windows into the insulation base and therefore integrating them directly into the cladding system represents a major step towards energy efficiency in window design.

With the blaugelb Triotherm+ system, this can be achieved without much cost or effort and without restricting the planning or further execution. A tried and tested system which is easy to fit and creates added value in all aspects of windows.

With the blaugelb Triotherm+ system, you are free to choose the type of seal you use, although this choice should always be made on a professional basis. For example, it is down to the fitter or the planner to decide which products are used for the window seal.

The individual profiles have an innovative dovetail joint, which means that transporting them to the construction site is no longer a major exercise in logistics. The compact dimensions of the profiles combined with the sturdy dovetail joint allow them to be lengthened effortlessly at all times, even for larger sized windows.

Not only does the blaugelb Hybrid Polymer Power Fix keep blaugelb Triotherm+ profiles in place until they are bolted to the wall, it also provides an increased measure of security and sealing quality between the wall and blaugelb Triotherm+ profiles, even where the substrate is not 100% level.

The blaugelb Frame Screw Fix FK-T30 anchors blaugelb Triotherm+profiles securely to the masonry. It allows the blaugelb Pre-Wall Installation system to be attached to the load-bearing structure with a safe mechanical fixing.



DOWNLOADS

Directly to the detailed assembly instruction.

Evidence of Performance



Material:

High-density EPS (expanded polystyrene), high ductility

Colour:

Grey

Compressive load bearing capacity at max. total deformation of 2%:

1,260kg/dm²

Compressive load bearing capacity at 60 x 40 mm:
(blaugelb Spacer Block)

5,800 N

Compressive load bearing capacity at 210 x 53 mm:
(blaugelb Shim Block HST)

15,510 N

Fire behaviour:

DIN 4102-1:1998-05 / DIN EN 13501-1:2019-05

B2 / Class E

Thermal conductivitynominal valueƛ10:
DINEN12667:2001-05

0.0375 W/m*K

Air permeability:

EN12207

Class 4

Water vapour diffusion resistance:

DINENISO12086

228 µ

Bending strength:

DINEN12089

≥2,490kPa

Compression stress (2%) compression:

DIN EN DIN EN 13163:2017 / EN 826:2013-05

≥1,435kPa

Shear strength:
DINENISO14130

0.217 N/mm²

Screw withdrawal value:

(Frame screw Fix FK-T30 7.5x62 mm)

2,100 N

Water absorption after 28days under water:
DIN12087

≤ 0.5vol.%

Compatibility with conventional building materials:

Compatible, except for solvents, solvent-bearing materials and materials that are not polystyrene-compatible

Ageing resistance:

Mould-proof, does not rot

Waste code:

Code no. 170604
Code no. 170904
