Description

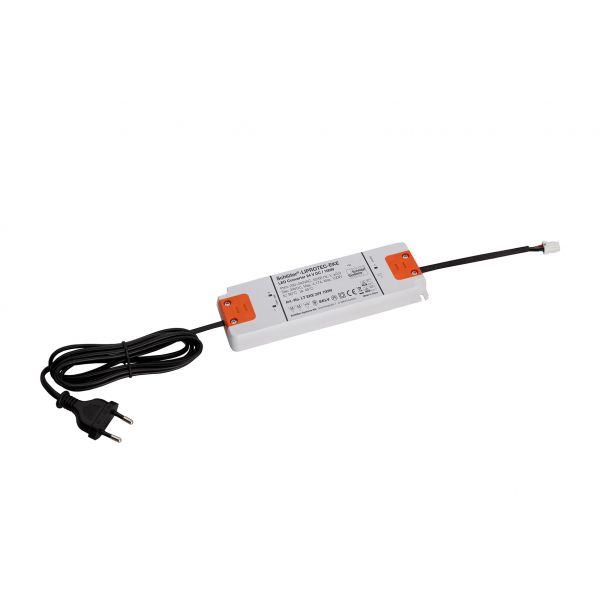

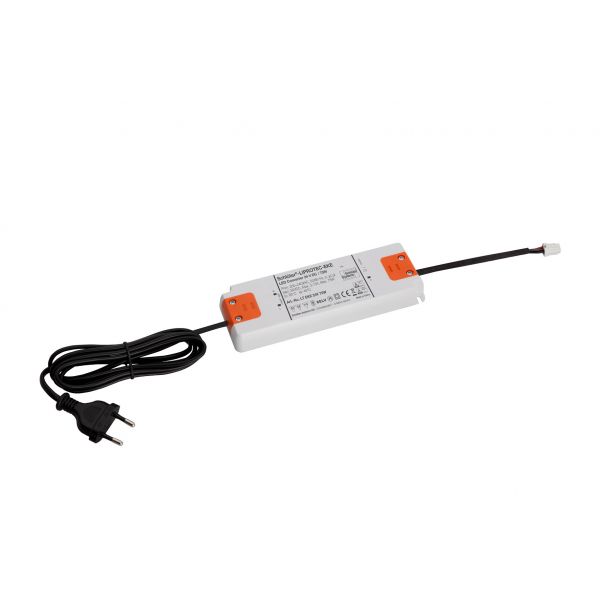

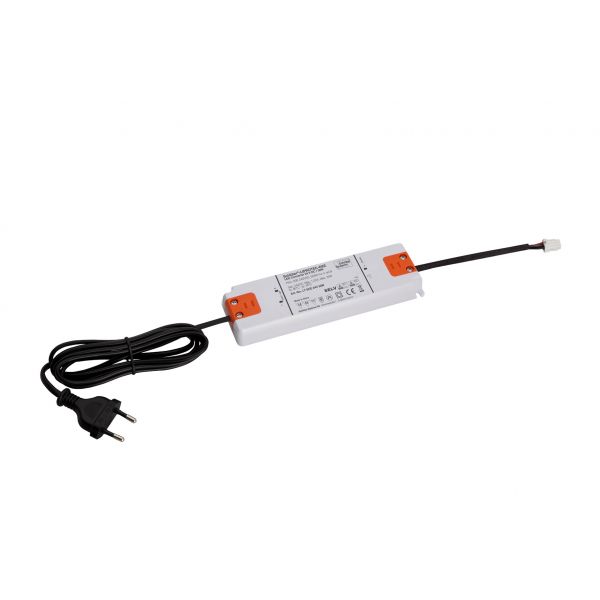

Schluter Liprotec PEKE are "Plug & Play" power supply units that convert the main voltage to the 24v required by the "Plug & Play" LED strips/modules. Seperate power supplies are available for non "Plug & Play" Liprotec LED Strips. (Please see Liprotec EKE)
Power Requirements (Please remember safety reserve when selecting):
- LLPM9 (RGB+W) - 15Watts/Mtr - (ie. For 1x 100cm Module use 30w psu, for 2 use 50w psu to allow for safety reserve)
- LLPM1 (Warm White) - 5Watts/Mtr (ie. For 1-5x 100cm Modules use 30w psu, for 6 use 75w psu to allow for safety reserve)
- LLPM1 (Neutral White) - 5Watts/Mtr (ie. For 1-5x 100cm Modules use 30w psu, for 6 use 75w psu to allow for safety reserve)
If required the supplied Euro-plug (shaver socket type plug) can be removed for direct connection to existing ring circuit or another alternative connection. Power Supply Units available in 30w (max 27watt usage), 50w (max 45watt usage, 75w (max 67.5watt usage, 100w (max 90watt usage) Extension Cables If required, Power Supply Units, Bluetooth accessories and Module leads can be extended by 3 or 5mtrs in length by using Liprotec PZK
