Schluter KERDI SHOWER T/TS/TT Trays


Option: 1520 x 1520 x 30mm Centre
Price:
(
Request for best price
per pack )
(
Request for best price
per pack )

Description

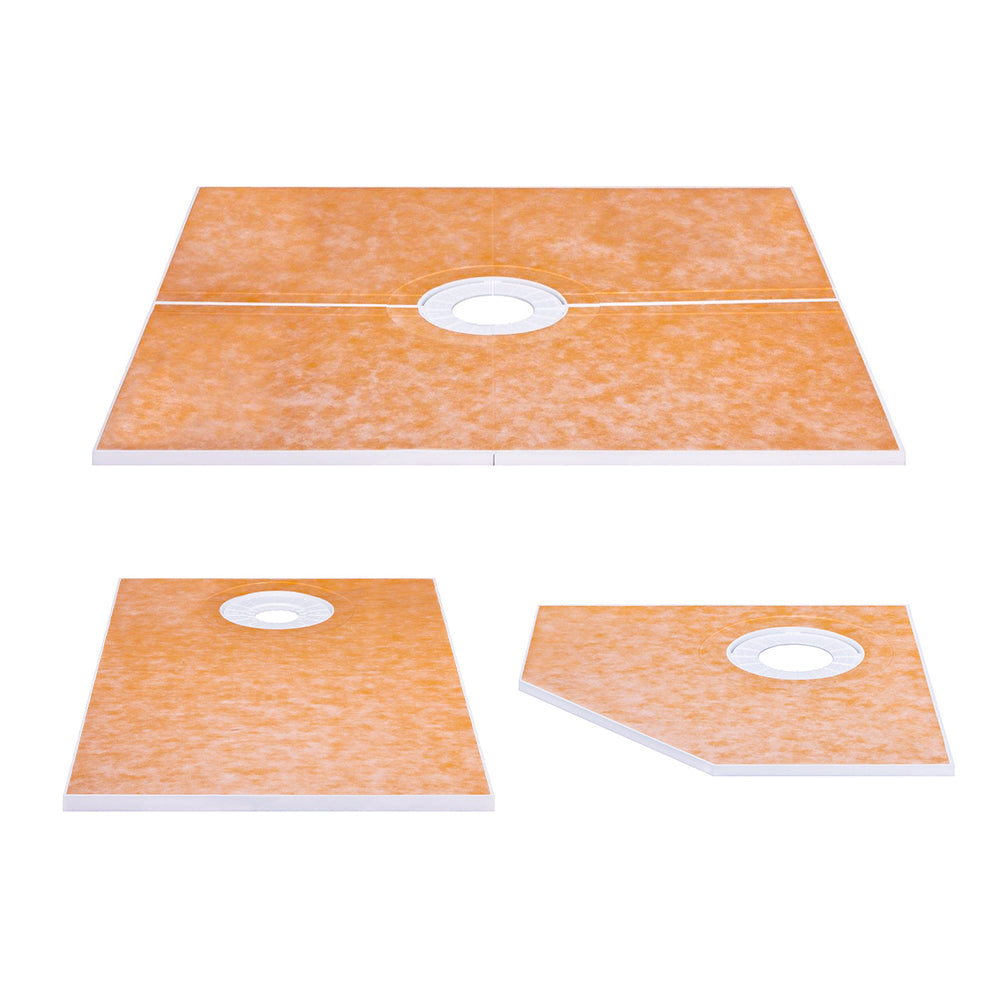

The Schluter KERDI SHOWER T/TS/TT Trays are pre-formed sloped trays for the construction of floor level showers with ceramic tiles. These trays are designed to be used with the Schluter KERDI DRAIN System that is available to purchase separately, available in many different variants to suit horizontal or vertical outlets and different flow rates.

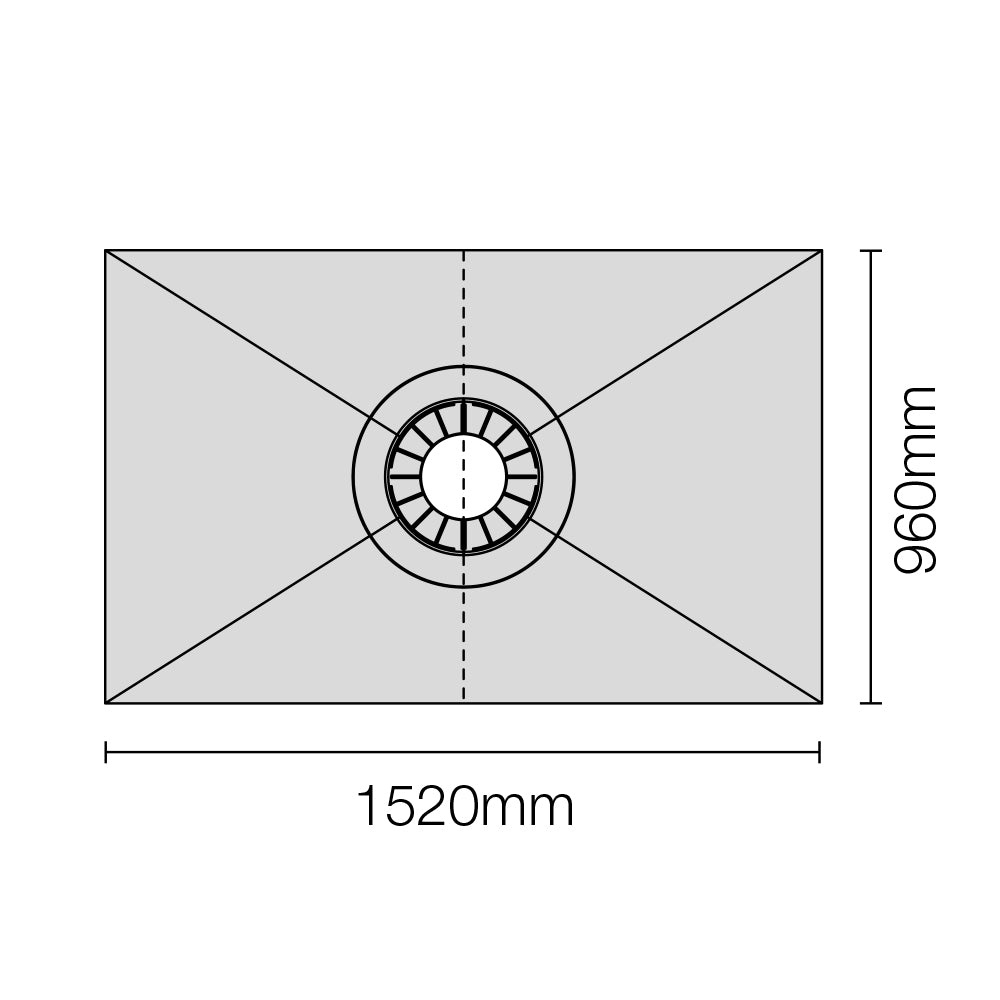

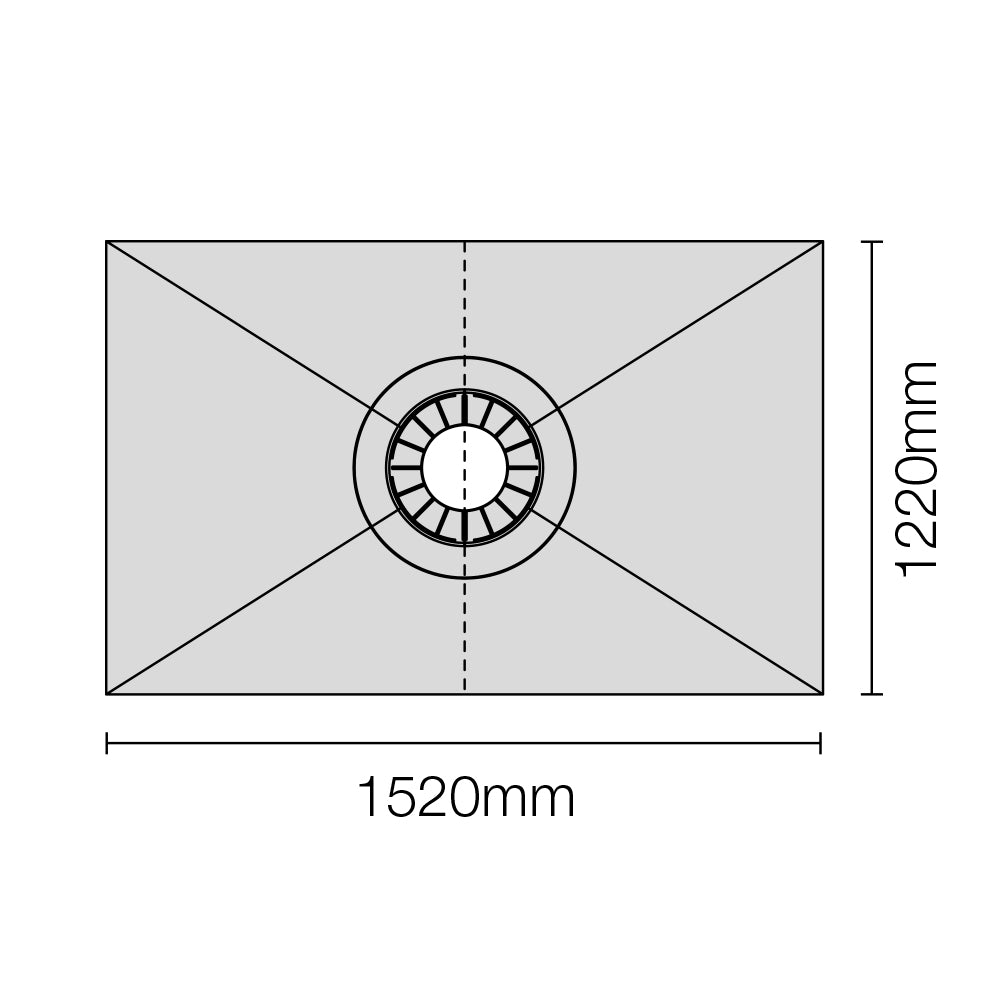

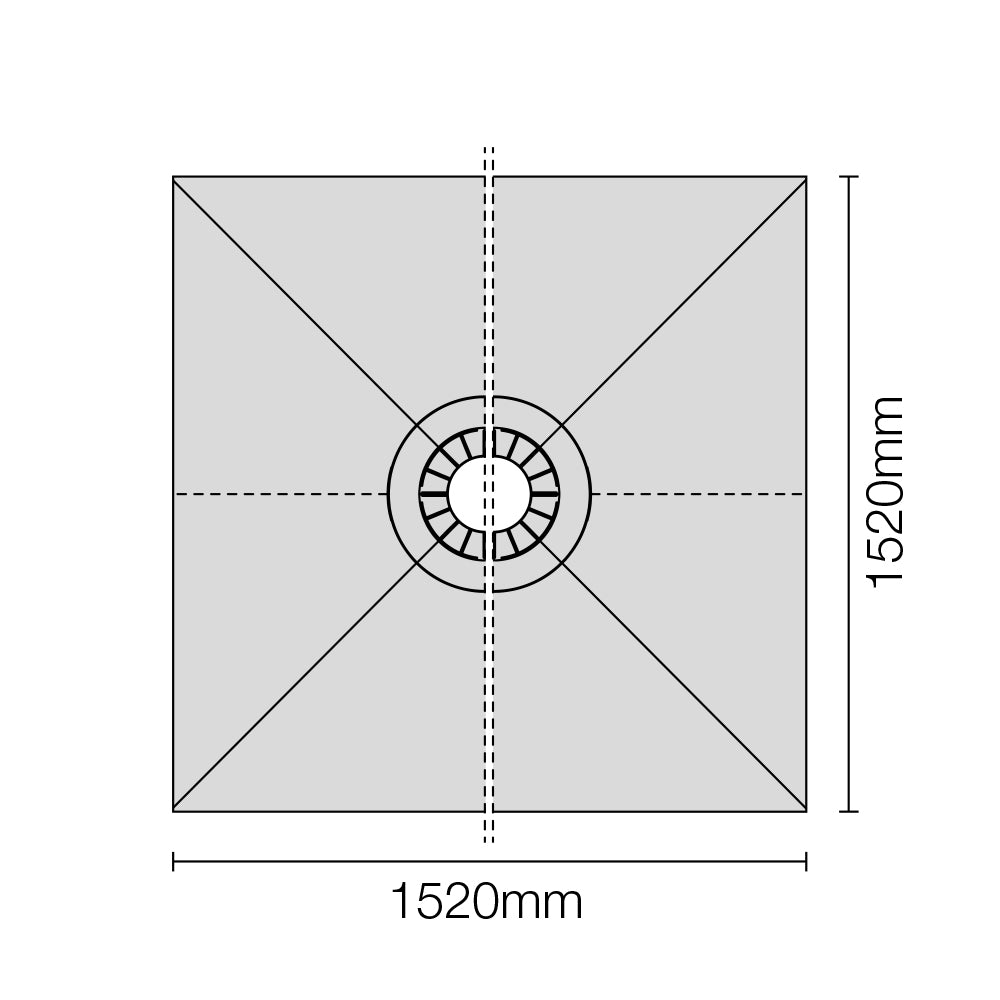

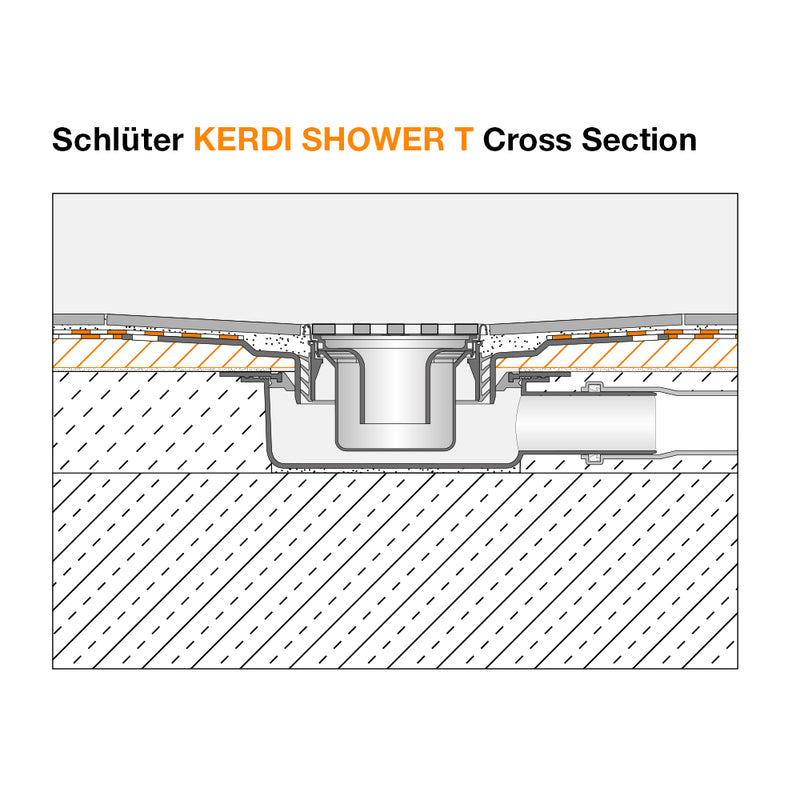

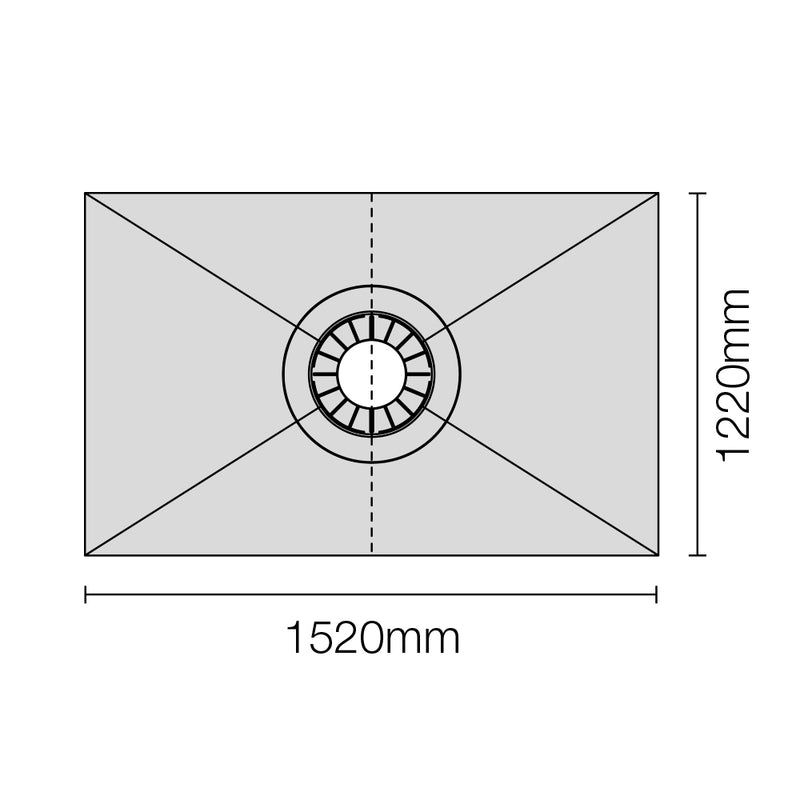

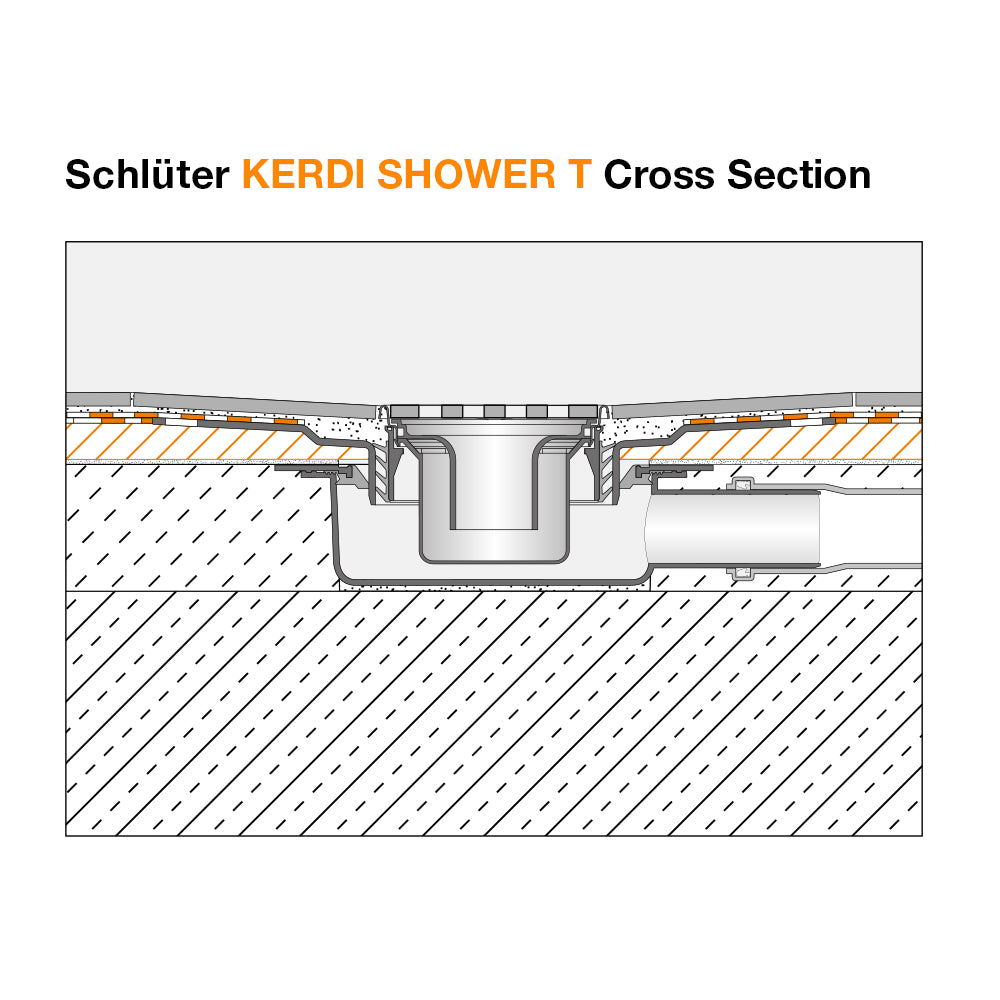

  • The Schluter KERDI SHOWER T Tray is a sloped tray with a centrally located drain. It is available in the following sizes: 1520 x 1520 x 30mm, 1830 x 1830 x 32mm, 1520 x 960 x 29mm, 1520 x 1220 x 28mm, 1830 x 1220 x 32mm. These trays are supplied in two halves (each with a pre-adhered KERDI Membrane coating), which are then interlocked together when installing.

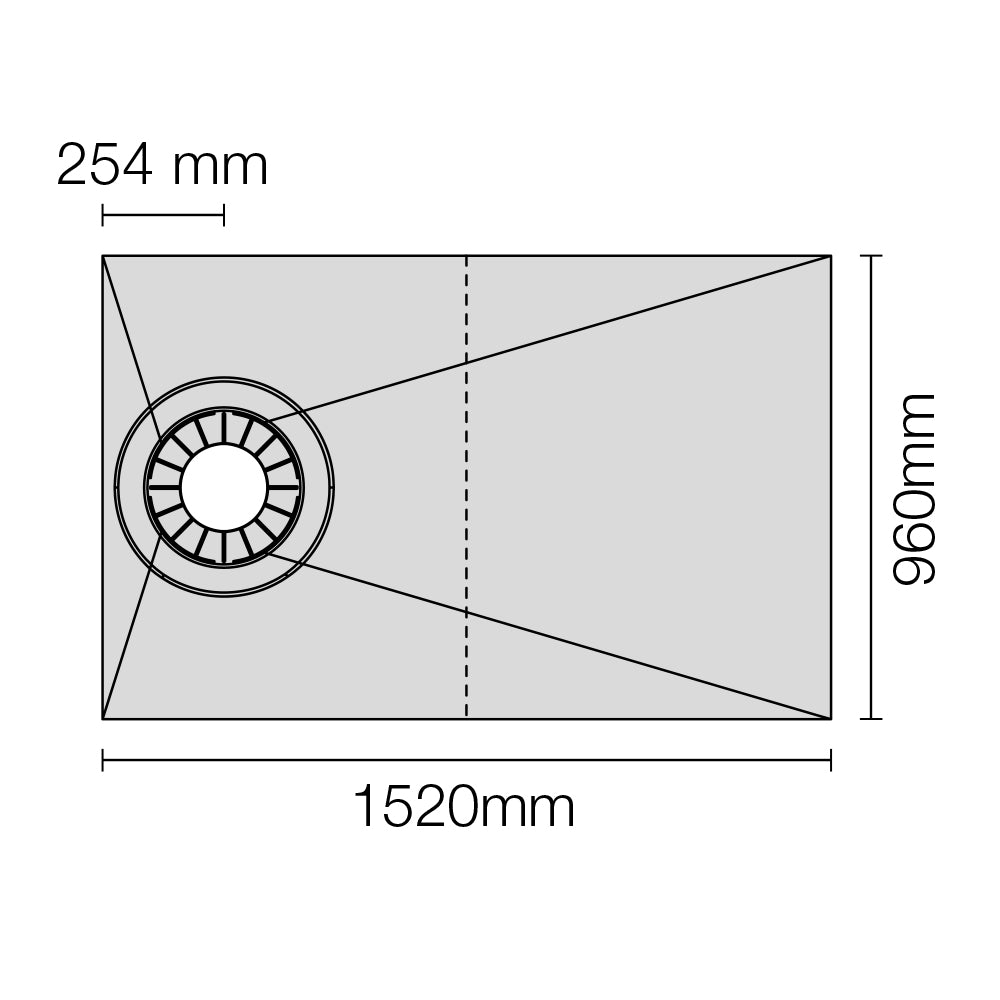

  • The Schluter KERDI SHOWER TS Tray is a 152o x 960 x 28mm sloped tray with a offset drain located 254mm (to the centre) from one end of the board. This tray is supplied in two halves with the KERDI Membrane in one piece, folded in the middle at the join between the two halves.

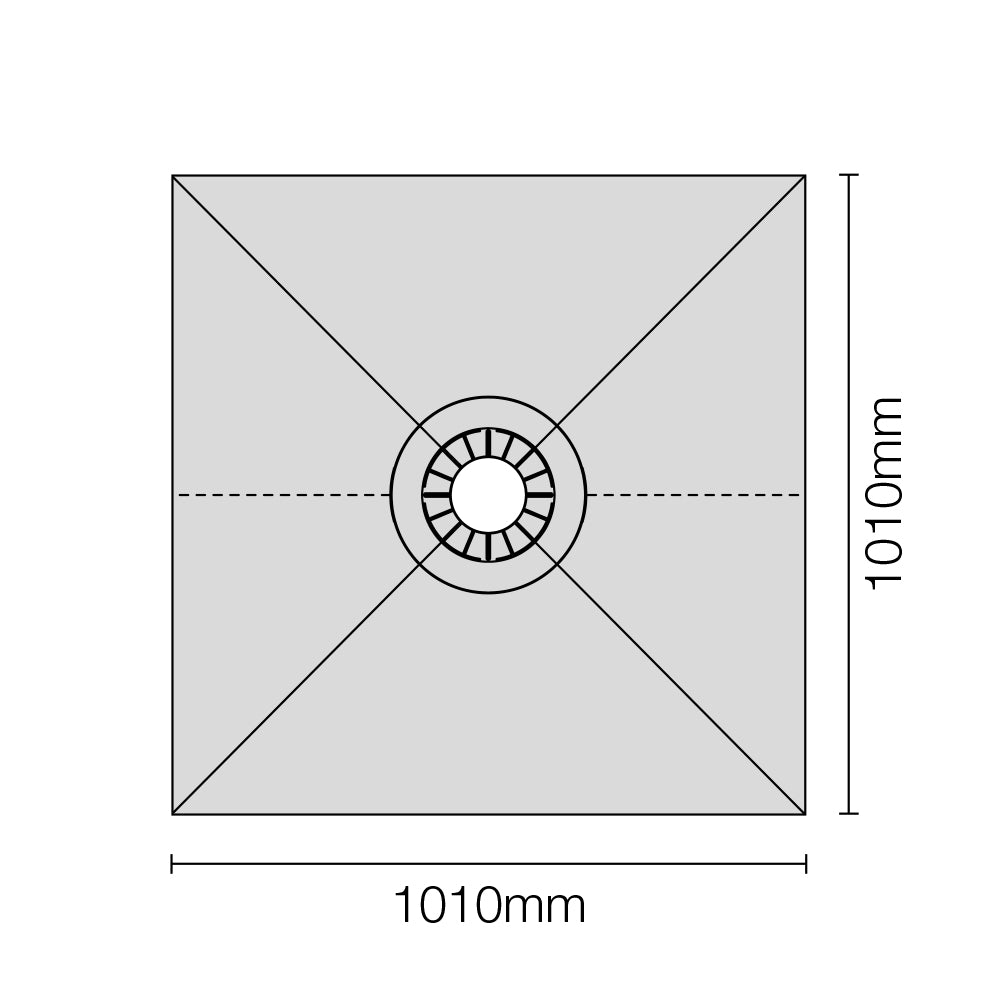

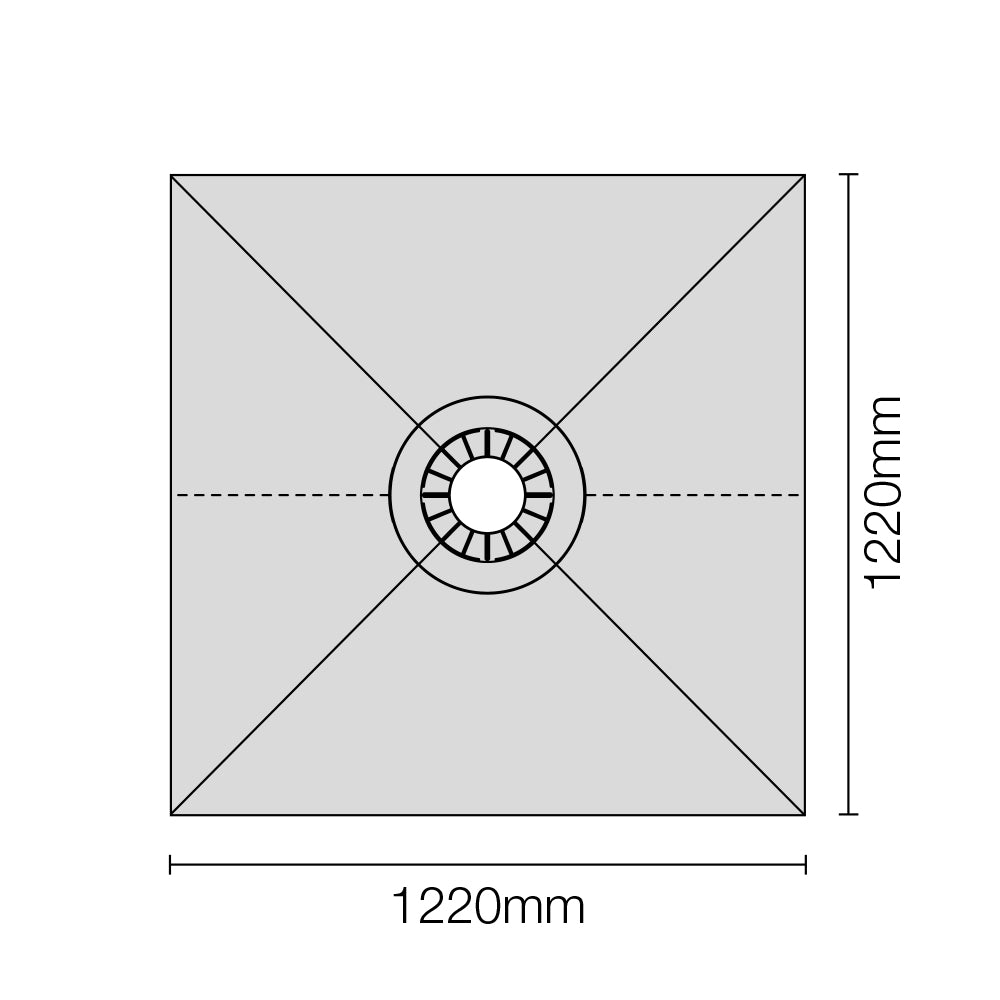

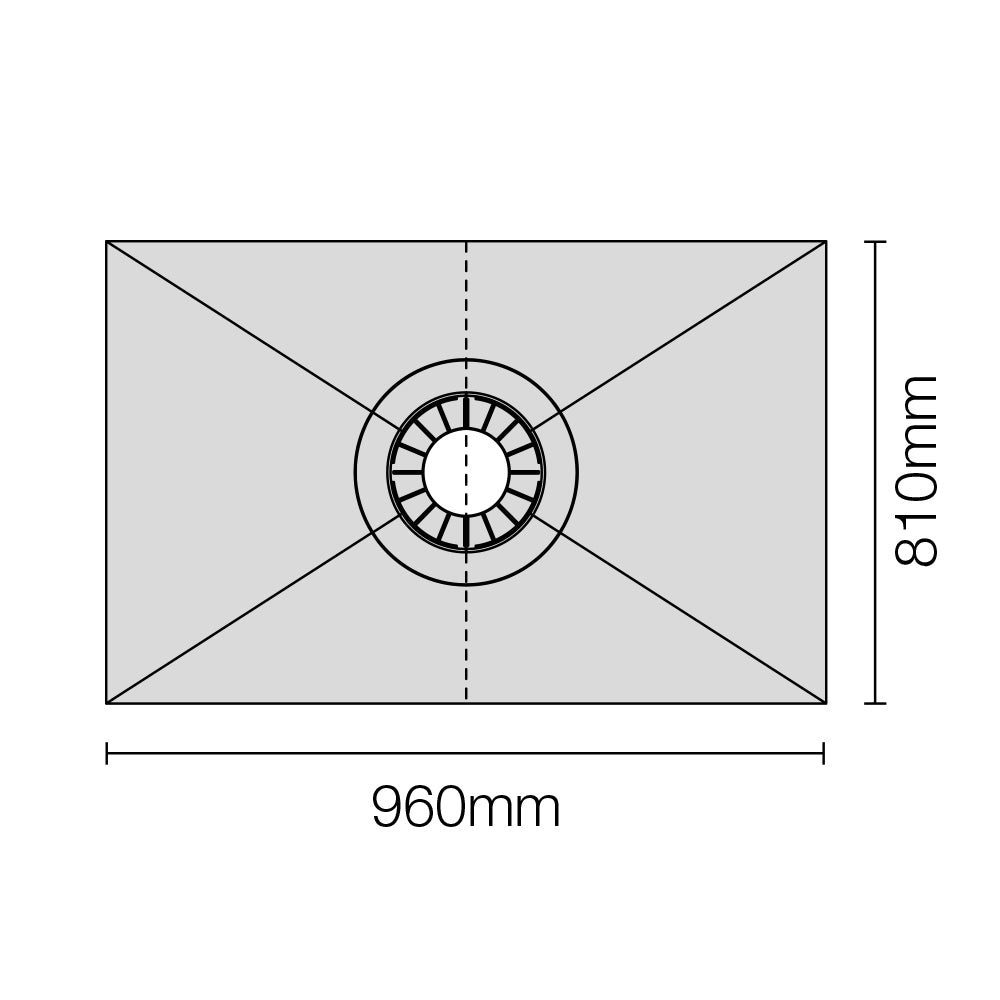

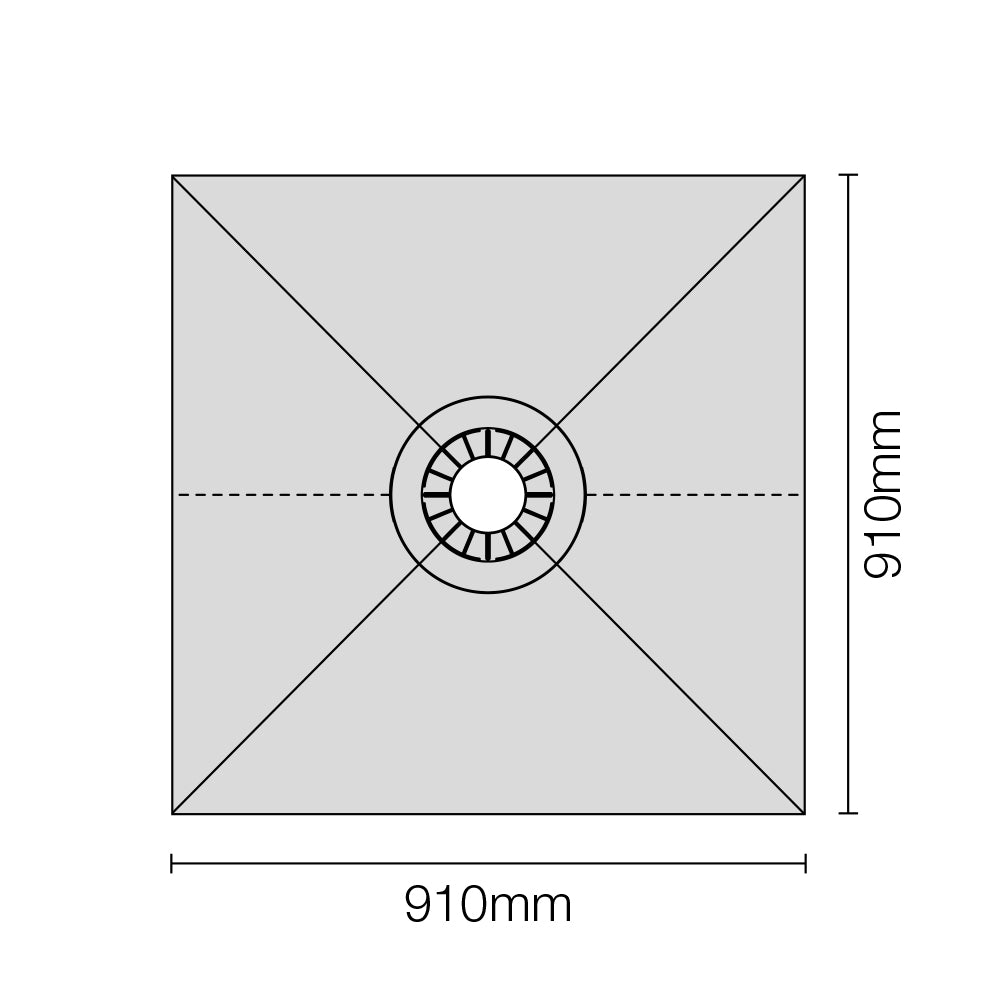

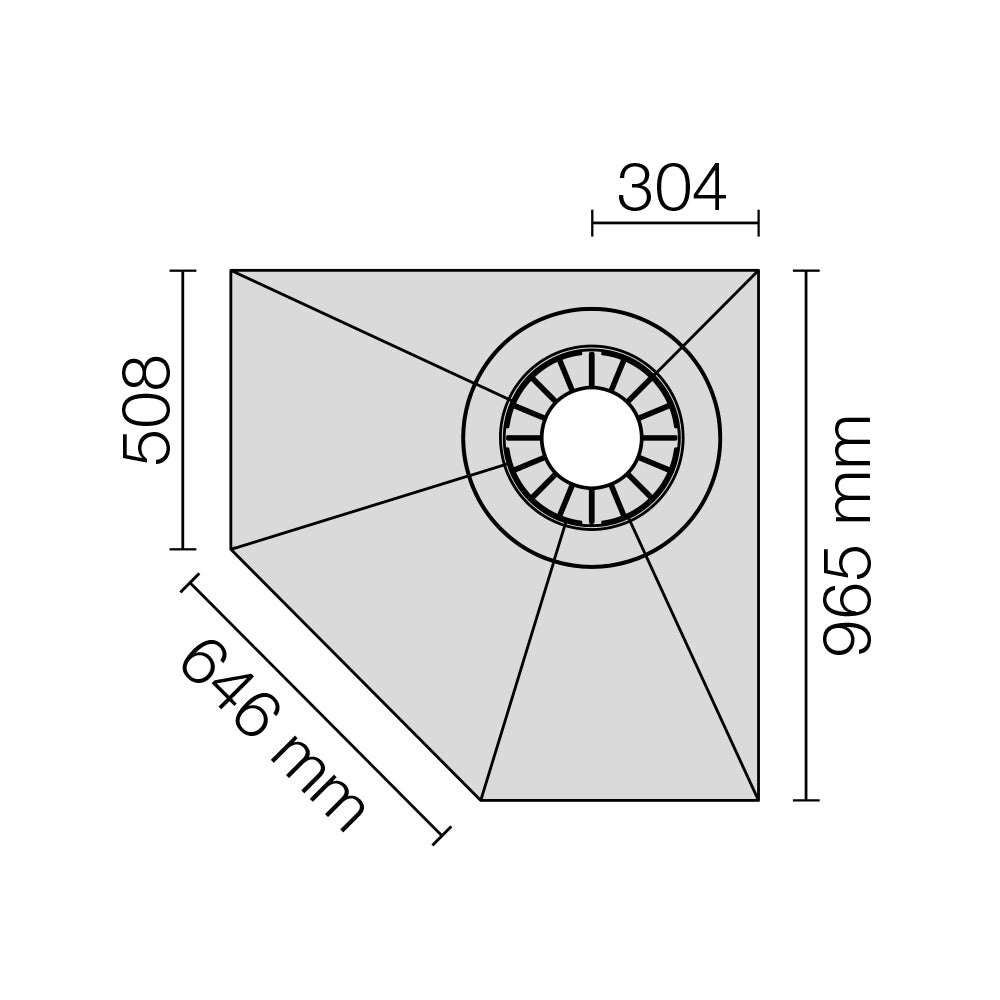

  • The Schluter KERDI SHOWER TT Tray is a sloped tray available with a central drain in the following sizes: 910 x 910 x 22mm, 1010 x 1010 x 23mm, 1220 x 1220 x 25mm, 960 x 810 x 23mm, and 1220 x 910 x 25mm. Also available is a 960 x 960 x 26mm tray with a corner drain.

The Schluter KERDI SHOWER T/TS/TT Trays are available in a range of sizes to suit different applications. The surface of the sloped trays already has the necessary gradient of > 2 % for use in wet room installations. Smaller dimensions can easily be cut to size with a utility knife. The material features prepared cutting grooves on the underside for circular cuts or for round shower bases.

The Schluter KERDI SHOWER T/TS/TT Trays are made from pressure resistant, expanded polystyrene foam (EPS). They are supplied with a Schluter KERDI sealing membrane layer (polyethylene waterproofing membrane with fleece fabric laminated on both sides for anchoring in the tile adhesive) that is pre-adhered to the surface of the board.

The trays are to be installed on a flat, level, load-bearing substrate. We recommend using Schluter KERDI KEBA Sealing Tape and KERDI KERECK Corner Pieces in conjunction with KERDI COLL L Adhesive to fully waterproof seal the joins between the tray and the wall. All these products are available to purchase as a complete waterproofing kit – Schluter KERDI SHOWER SK / SKB. This kit is can also be configured to include a KERDI DRAIN BASE Floor Drain Set.



Technical Data Sheet
