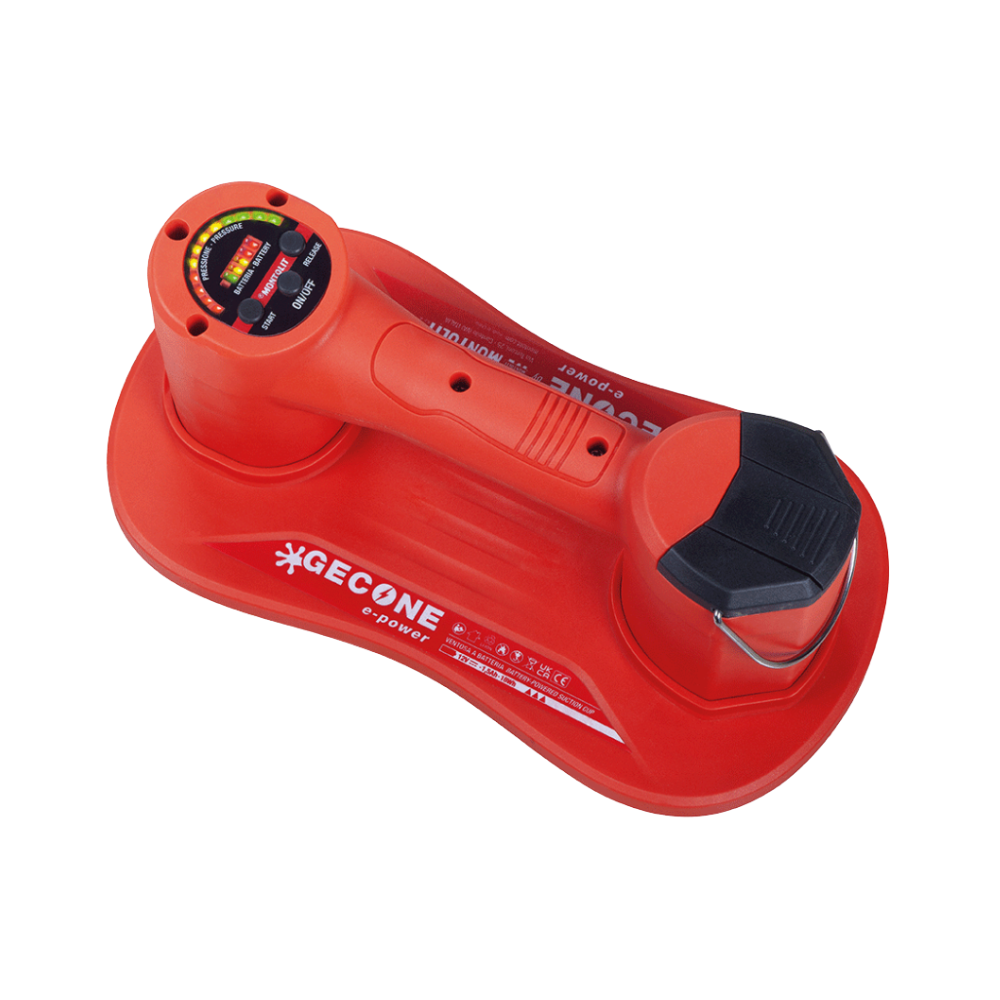

Professional Battery-Operated Suction Cup

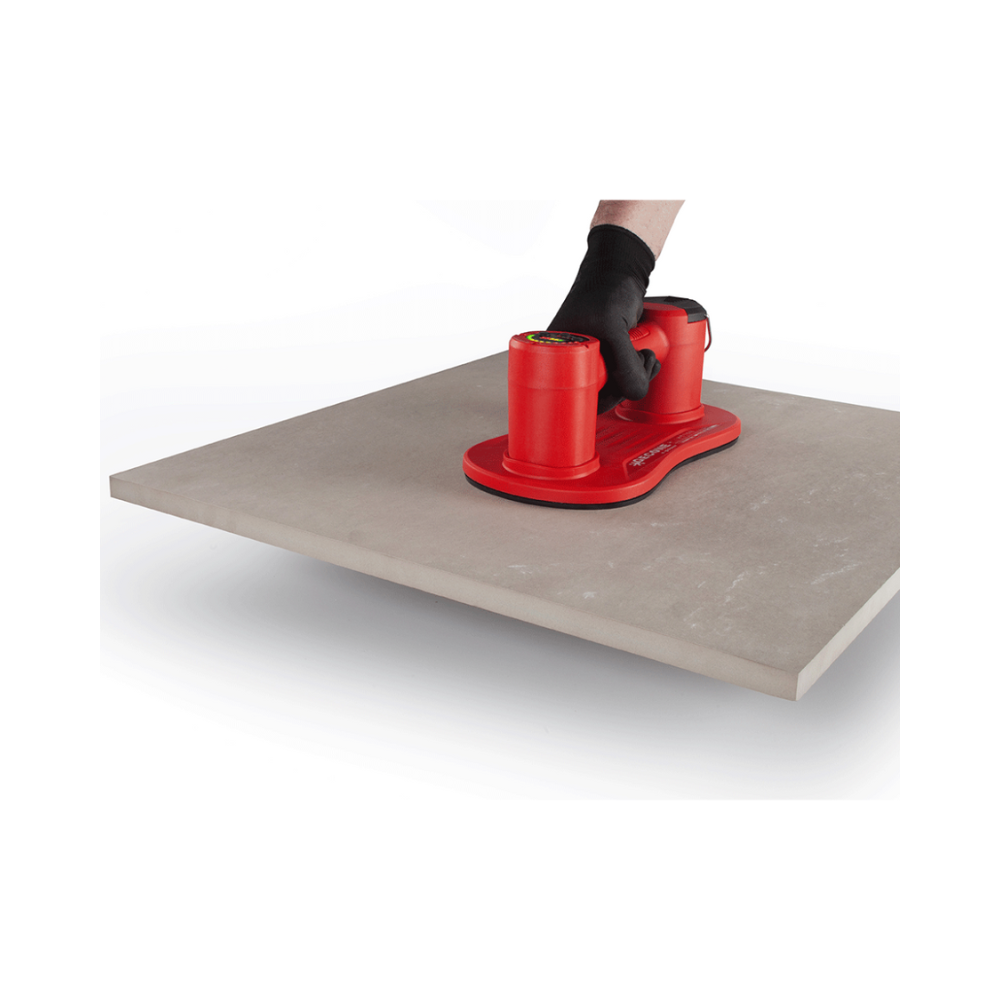

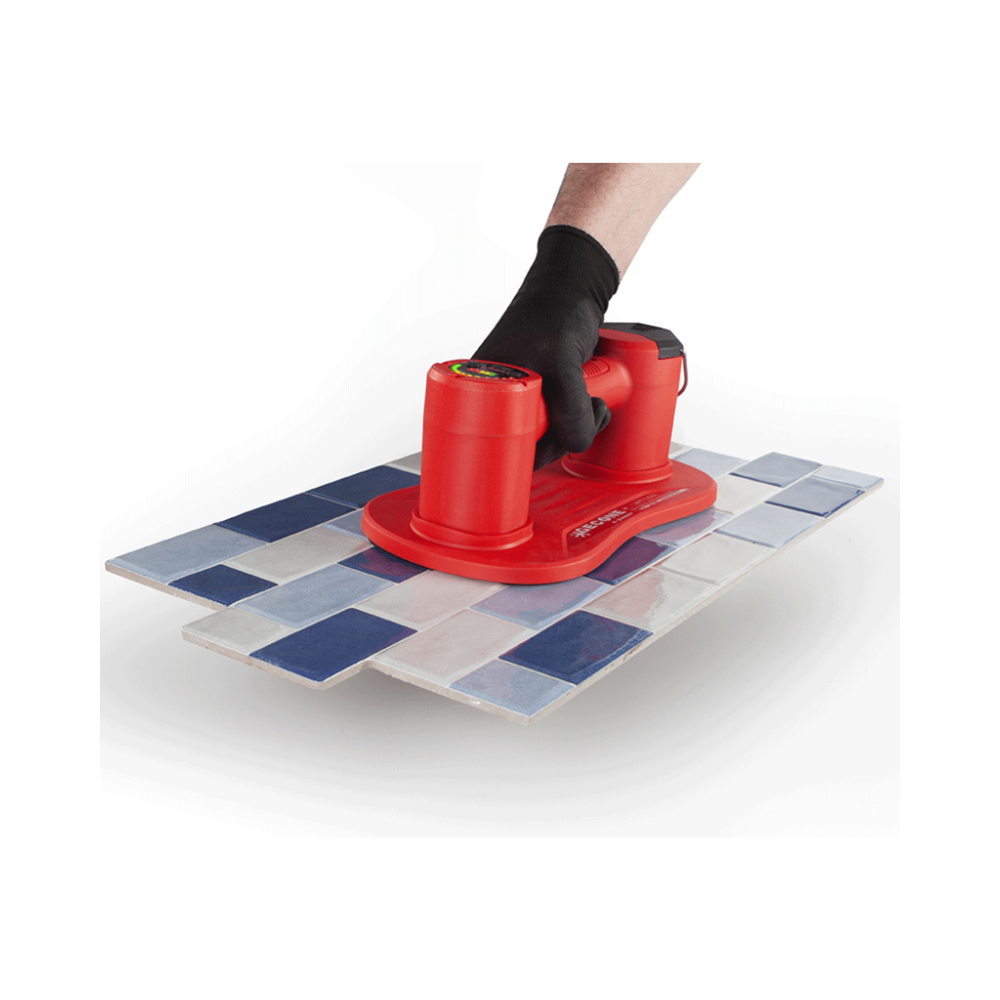

GECONE is a professional battery-powered suction cup to be used EXCLUSIVELY for the manual lifting and handling of ceramic and porcelain stoneware tiles, glass, granite, marble.

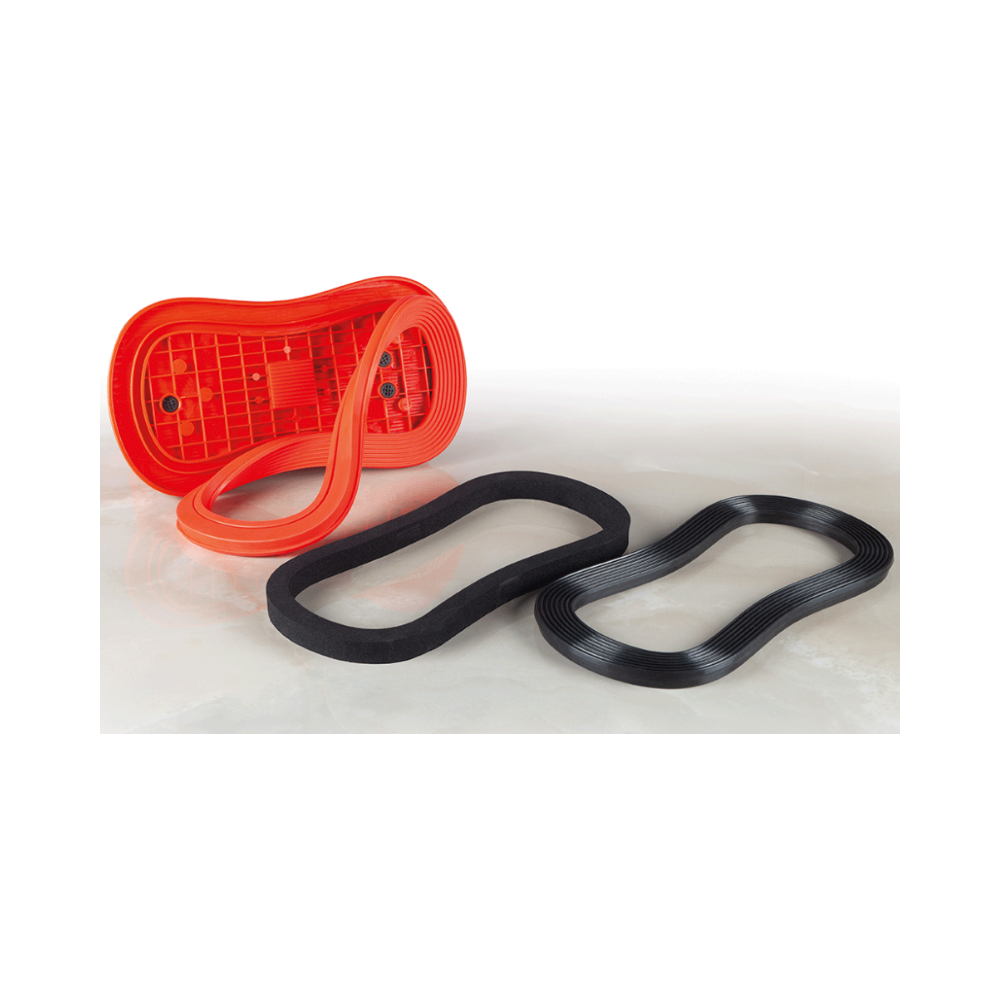

GECONE is equipped as standard with three interchangeable sealing rings for smooth or structured and 3D surfaces.

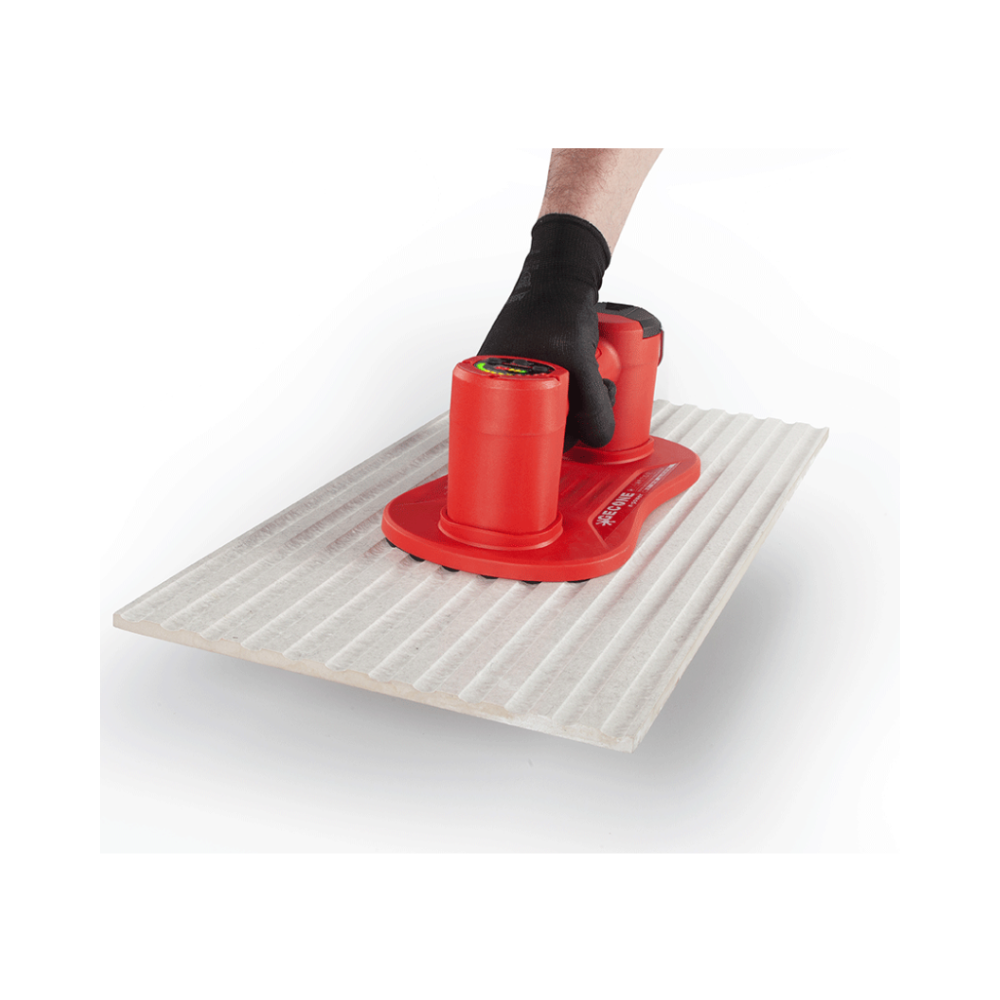

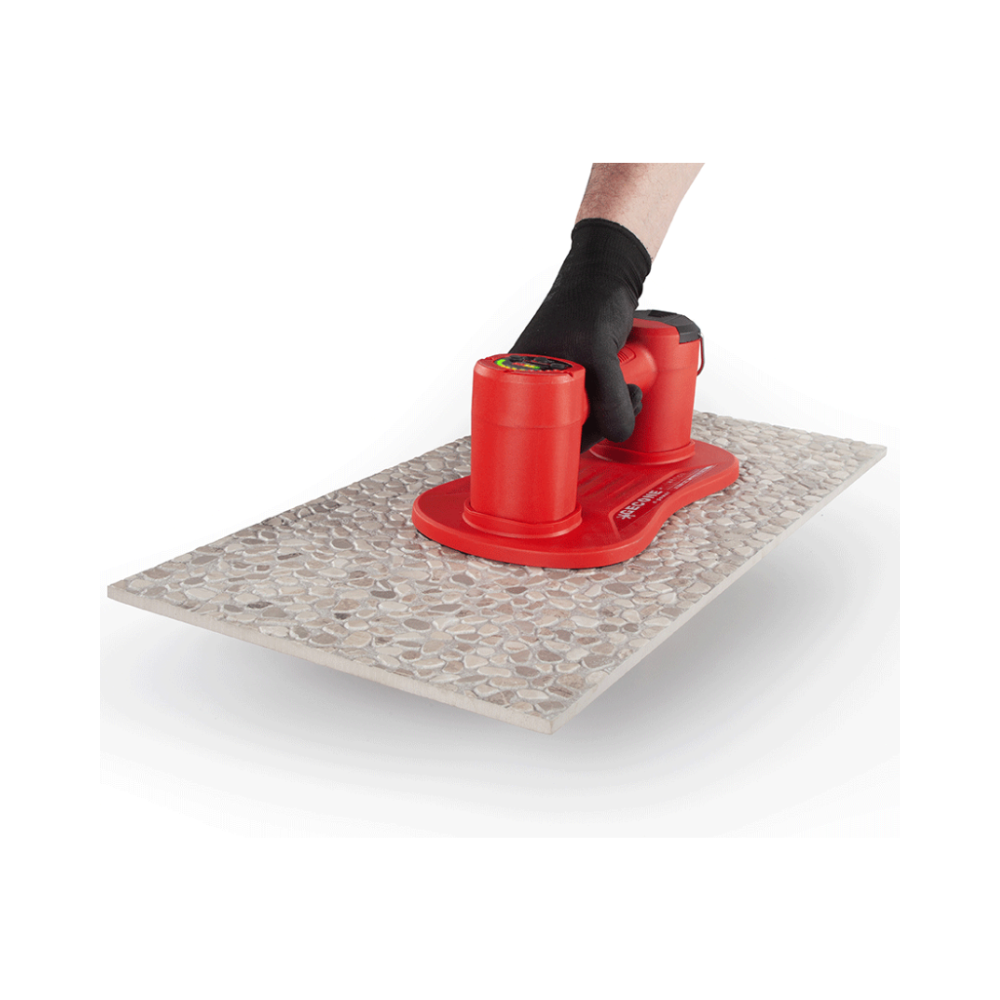

The red rubber ring with 8 lips is suitable for almost all types of materials, the black one made of stiffer foam rubber is suitable for heavier, thicker materials and the black one made of soft rubber is suitable for tiles with a 3D textured surface.

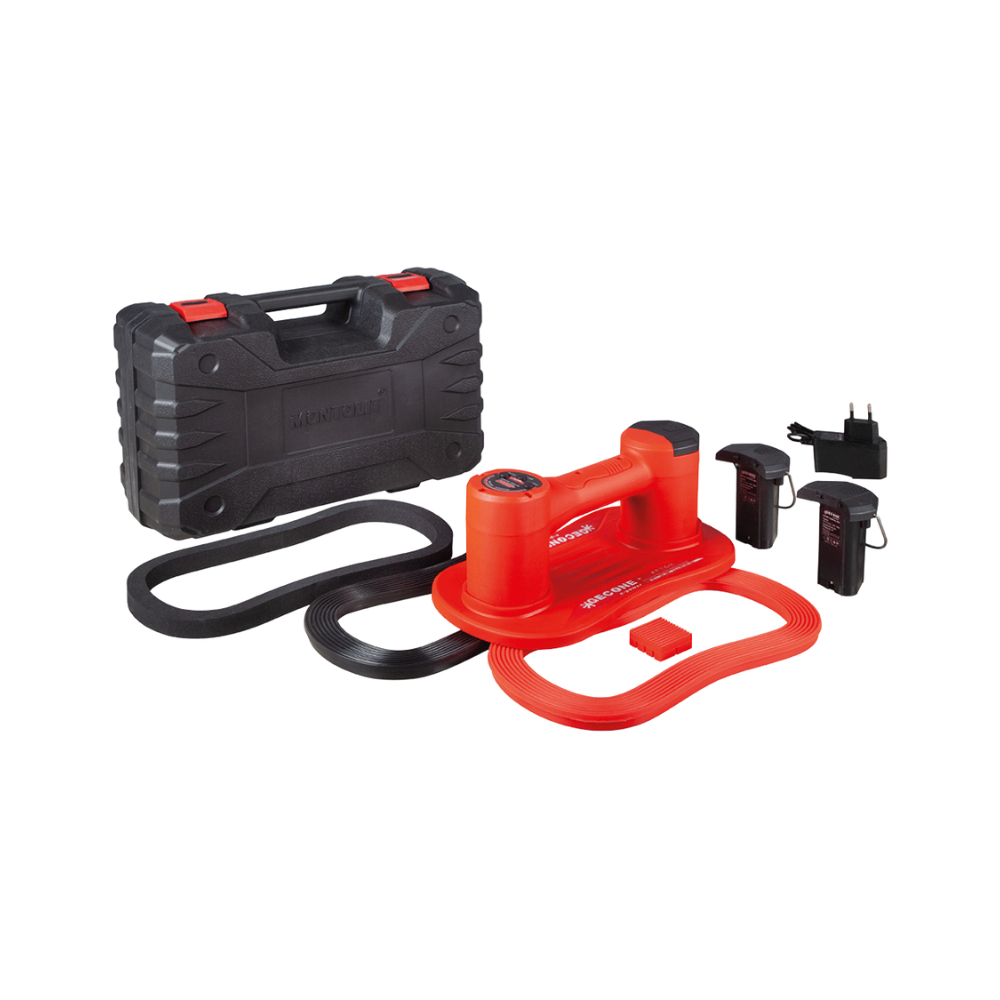

GECONE is contained in a practical plastic case and is equipped with two spare lithium batteries and a charger.

GECONE is operated simply from the keypad with the Start button that activates the vacuum pump until it reaches a safety pressure; the pump restarts automatically in the event of a loss of pressure.

GECONE is equipped with two safety systems that prevent pressure loss in case of battery replacement or if the release button is inadvertently pressed.

PERFORMANCES

• Duration: 16 hours.
• Lifting capacity: 200 kg vertically and 100 kg horizontally with black foam rubber ring.
• Lifting capacity: 180 kg vertically and 80 kg horizontally with red rubber ring and black soft rubber ring.

Technical data sheet
