Description
OmniFit® Slab 35 (1200mm x 600mm) - 100mm

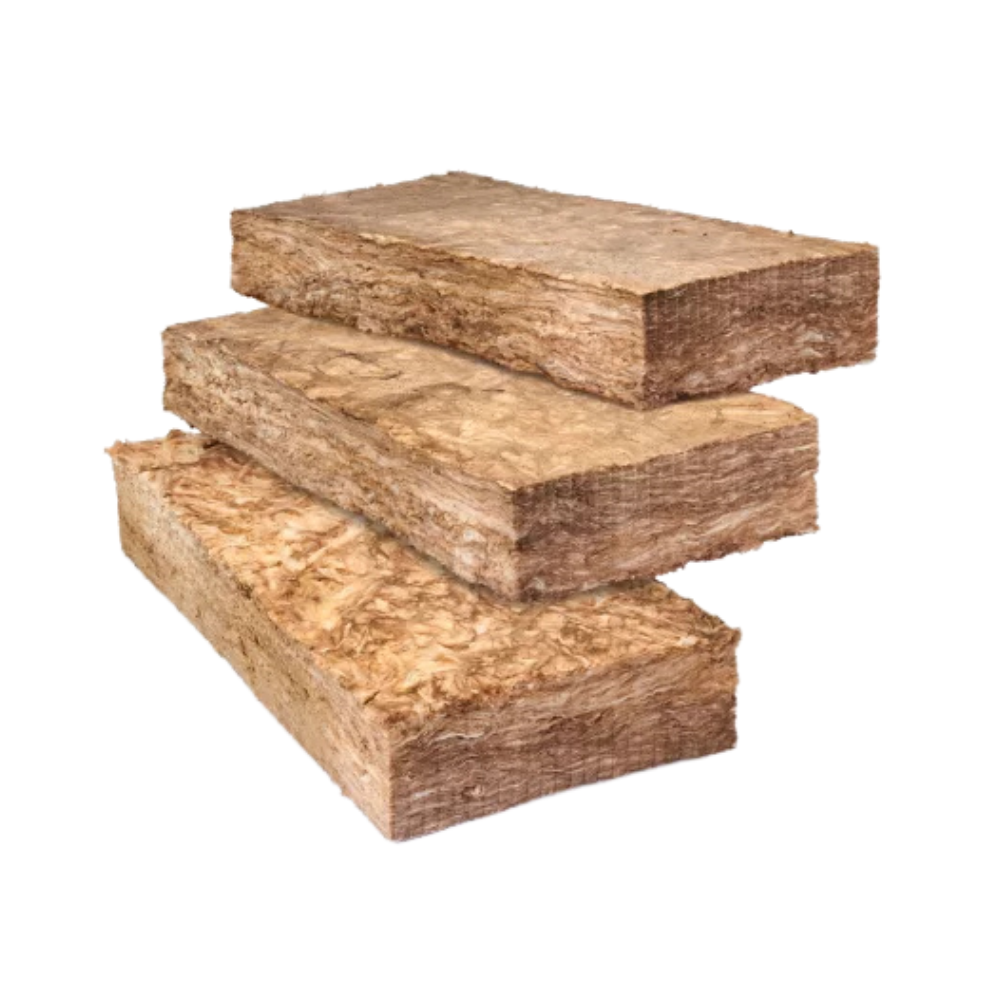

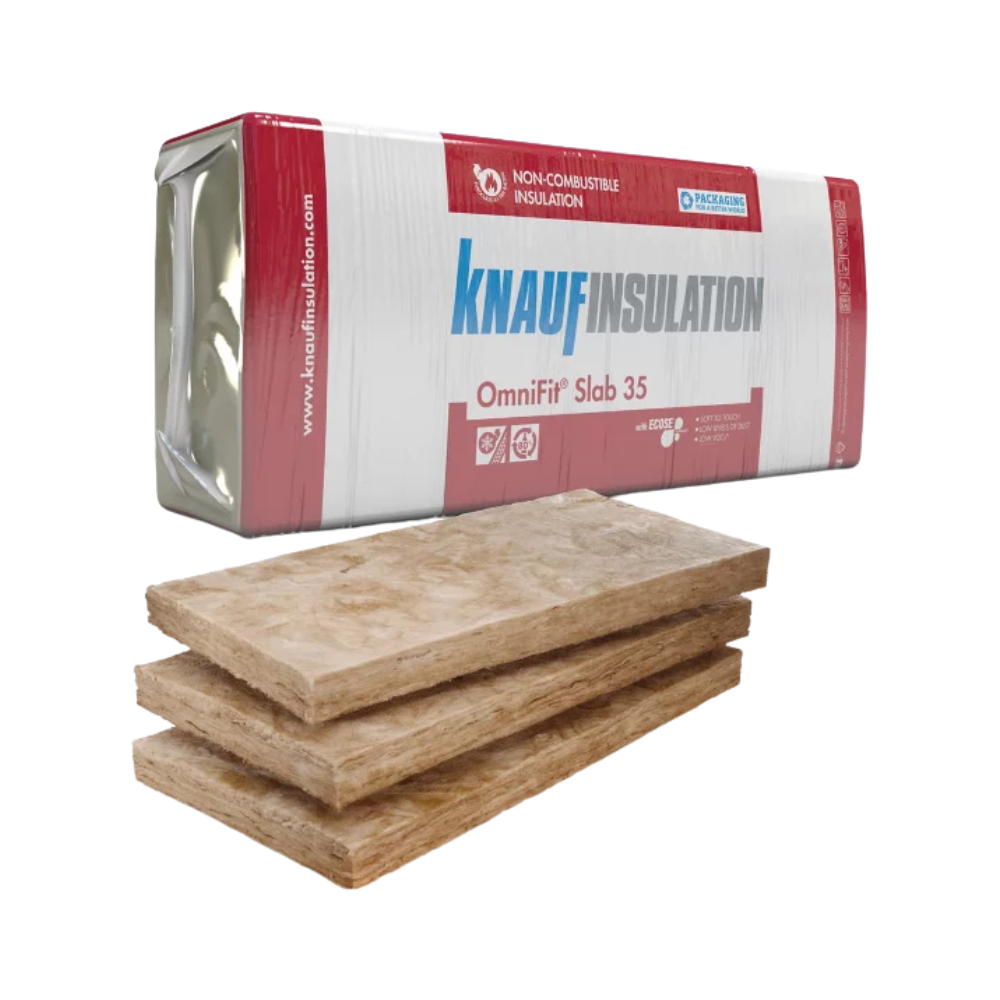

OmniFit® Slab 35 is a glass mineral wool slab, designed for use in multiple applications, and holds an Agrément certificate by the BBA for use in both timber and steel frame construction. It offers thermal conductivity of 0.035 W/mK, combined with acoustic performance. OmniFit® Slab 35 is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique plant-based binder, ECOSE® Technology.
Product Benefit
-
OmniFit® Slab 35 holds an Agrèment certificate by the BBA (under reference number 24/7110) for use as insulation between rainscreen façade systems.
-
Multi-purpose product that can be used to insulate a wide range of applications, reducing the need to purchase and handle multiple products.
-
Designed to friction fit between studs, which prevents air movement and infiltration around the edges, minimising heat loss.
-
Manufactured size allows friction fitting between common stud centres without any cutting and waste on-site
-
Compression packed with more product on a pallet than alternative rock mineral wool products.
-
Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants
Applications
Multi-Application
Ground floors
Internal floors
Pitched roofs at rafter level
Internal walls / partitions
Light steel frame walls
Timber frame walls
|
R-Value (m²K)/W |
Thickness(mm) | Width(mm) | Length(mm) | Pieces Per Pack | M² Per Pack |
| 4.40 | 50 | 600 | 1200 | 12 | 8.64m² |
| 5.25 | 70 | 600 | 1200 | 8 | 5.76m² |
| 6.45 | 75 | 600 | 1200 | 8 | 5.76m² |
| 2.50 | 90 | 600 | 1200 | 6 | 4.32m² |
| 2.27 | 100 | 600 | 1200 | 6 | 4.32m² |
| 4.55 | 140 | 600 | 1200 | 4 | 2.88m² |
| 2.90 | 150 | 600 | 1200 | 4 | 2.88m² |
Technical Data
| Description | Value |
Unit |
Norm |
| Reaction to fire |
A1
|
EN 13501-1 | |
| Thermal conductivity declared | 0.035 |
W/(mK)
|
