Ejotherm STR H 6 x 80mm (Box of 100)


Size: 80mm
Price:
(
Sale price£35.46 GBP
per pack )
Inc VAT
(
Sale price£29.55 GBP
per pack )
Exc VAT

Description

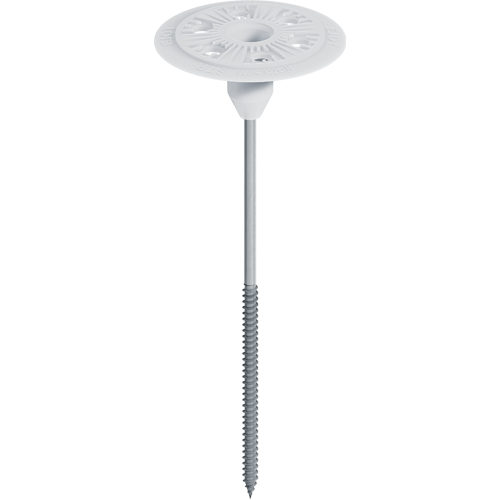

Ejotherm STR H 6 x 80mm Box of 100

Applications

  • Screw fastener for countersunk and surface fixed installation
  • for timber and some steel substrates
  • For timber and steel (max. 0.75 mm) substrates
  • For all insulation boards
  • For countersunk and surface fixed installation

Properties

  • Fastener, consistent of a galvanized steel screw, included washer and EPS sealing plug.
  • Countersunk Installation - EJOT STR principle with ejotherm STR cap for homogeneous surfaces and even rendering - quick and easy without milling dust
  • No drilling necessary
  • Surface fixed Installation using ejotherm STR plug
  • Permanent contact pressure
  • Premounted screw for quick installation
  • 100% setting control: the countersunk Installation of the washer indicates safe anchorage

Technical specifications

  • Screw diameter: 6 mm
  • Washer diameter: 60 mm
  • Screw-in depth: 30 - 40 mm
  • Screw drive: TX25
  • Point thermal transmission χ:
    countersunk installation in timber substrates: 0.001 W/K
    surface fixed installation in timber substrates: 0.002 W/K

Recommended use loads:

  • Wood fibreboards (thickness ≥ 17.0 mm): 0.25 kN
  • Chipboards (thickness ≥ 13.0 mm): 0.25 kN
  • Gypsum fibreboards (thickness ≥ 12.5 mm): 0.15 kN
  • OSB plates (thickness ≥ 16.0 mm): 0.25 kN
  • Solid wood plates (thickness ≥ 27.0 mm): 0.25 kN
